HERMES QL applicators HQ/HQI for Linerless and InNo-Liner
Automatic labeling
HERMES HQ / HQI applicators are a further development of the proven HERMES applicators, fully compatible, adding extra functions. Existing applications can continue without limitations.
Easy to configure
The applicator can be fully set on the printer control panel, configurations be stored and called up. Automatic calibration features speed up the setup.
Process control
Detailed statistical values are provided, so are sophisticated error messages. Constant control enables response right away in events of errors.
Updates
Applicator firmware can be updated on the printer control panel or the printer‘s web server. New features and specific solutions can therefore be tested right away and distributed in the field.
-

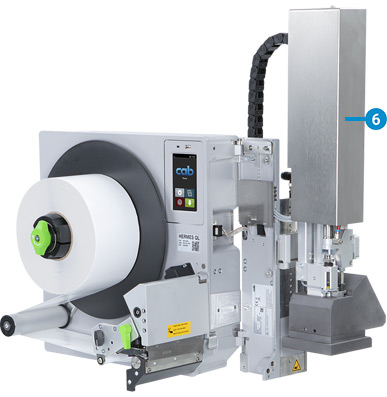

Linerless / InNo-Liner applicators
-
1 Long product life
by a precise and low-wear linear guide2 Products of variable heights
Labels can be applied on different heights using a stroke cylinder. Its standard lengths are 200, 300, 400 and 600 mm.3 Protective chassis
is a standard to protect the cylinder and the guide. It can be provided adapted to the product jig on a labeling workstation.4 Highly reliable processes
Support air and intake air can be defined, so can stroke speed. Sensor control5 Label application
in real time. Small or large labels, 30 to 456 mm high and 50 to 105 mm wide, can be processed using an applicator6 Pivoting applicator
The print mechanics can be accessed quickly and easily in case of maintenance or if materials have to be replaced.Options
Pressure-reducing valve
It reduces the pressure exerted by the stroke cylinder to a product.Pressure-reduced applicator
It has been designed for manual workstations missing a protective cover. The cylinder diameter is reduced to 12 mm. To prevent from injuries, a safety valve limits compressed air to a maximum of 4.8 bar.Combination applicators, transfer modules and options (catalog page 9)
-
Stroke applicators HQ 4024 for linerless
Labels are applied in real time onto packagings of different heights. As much as 90 percent savings of compressed air. Labels applied onto variable heights using one tamp pad.
Stroke applicators HQI 4034 for InNo-Liner
Labels are applied in real time onto packages of different heights with InNo-Liner.
- As much as 90 percent savings of compressed air
- Labels applied onto variable heights using one tamp pad
Front side applicators HQ 3014 for linerless
Labels are applied in real time preferably from the top or from the side onto the front or back of packages in motion.
Stroke blow applicators HQ 4614 for linerless
Labels are applied in real time from all sides onto packages of various heights in motion.
Stroke applicators HQ 4014 for linerless
Labels are applied in real time preferably onto packages. The type of pad defines whether a package has to be at rest or can be in motion at the time a label is applied. Labels can be applied in real time from all sides to packages.
Vacuum belt applicators HQ 5314 for linerless
Labels can be applied in real time from all sides onto plane packages in motion.
Vacuum belt applicators HQ 5414 for linerless
Labels can be applied from the top or from the side onto cylindric packages in motion. Corner-wrap applications are as well possible.
Air jet box HQ 6114 for linerless
Labels can be applied to packages in motion or at rest. Each label is sucked by a fan and blown off by a powerful blast of air coming through aligned nozzles.
