Extraction and filter system
AF5
for XENO systems and LSG+100E
Protects the operator’s health and prevents the working area and lens from being contaminated
Processing materials with a laser produces poisonous dusts and gas pollutants. Extraction protects the operator's health and prevents the laser room and lens from contamination.
It also ensures that laser power maintains. Air is extracted from the working room with the help of a highly performant turbine throught a flexible hose.
Pollutants and dusts are emitted in the pre-filter and a filter particularly provided for suspended particles. Gas pollutants are absorbed by the active carbon filter. Clean air is returned to the environment.
The system has a modular design. Filters are easy to replace.
Consumables
6.3 Pre-filter mat
6.4 Pre-filter
to absorb about 10 times more pollutants and dusts compared to the mat
to absorb about 10 times more pollutants and dusts compared to the mat
6.5 Filter for suspended particles
6.6 Active carbon / BAC filter
Accessories
6.7 Pre-filter module
for retrofitting
for retrofitting
6.8 Suction hose 2.5 m
included in the scope of delivery
included in the scope of delivery
6.9 Crevice nozzle
included in the scope of delivery to clean the operation room
included in the scope of delivery to clean the operation room
6.9 XENO 4 AF5 cable, 3 m
Want to learn more?
Ask for an offer free of charge and without obligation:
Learn more:
| 6.7 | 6.8 | ||

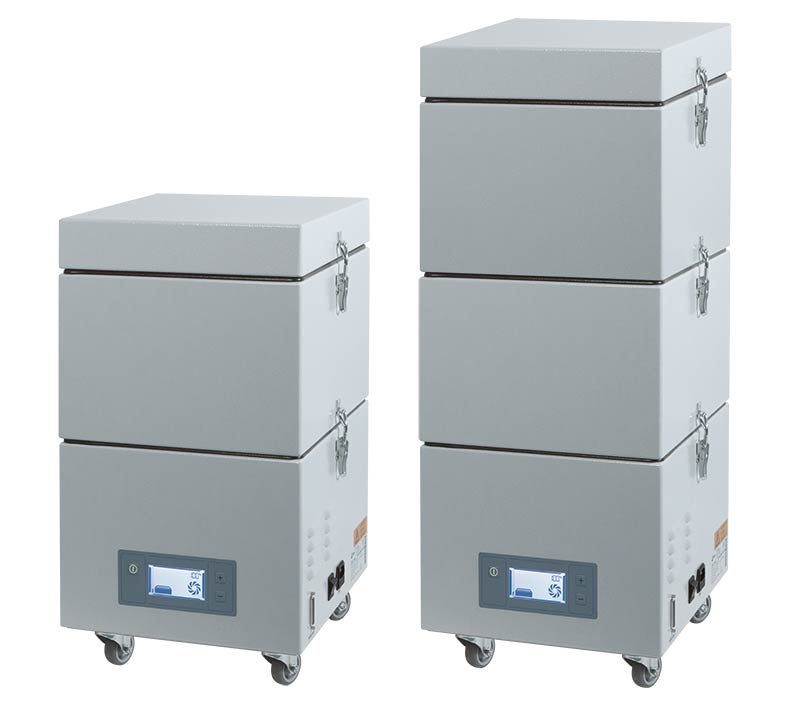

| Extraction and filter device | AF5 | AF5 with a pre-filter module |
|
|---|---|---|---|
| Suction power up to m3/h | 230 | ||
| Vacuum up to Pa | 11,000 | ||
| Filter equipment | Filter class | ||
| Pre-filter mat | F5 |  |
- |
| Pre-filter | F7 | - | |
| Filter for suspended particles | H13 | |
|
| Active carbon / BAC filter | |
|
|
| Dimensions and weights | |||
| Device | Width mm | 350 | 350 |
| Height mm | 650 | 880 | |
| Depth mm | 350 | 350 | |
| Weight approx. kg | 40 | 55 | |
| Suction pipe NW mm | 50 | 50 | |
| Operating data | |||
| Power supply | 100-240 VAC, 50/60 Hz | ||
| Power consumption | Standby W | <40 | |
| typical W | 400 | ||
| upt to W | 1.100 | ||
| Approvals | CE, FCC, cETLus, W3, CAN ICES-3 |
||
| Operation panel | |||
| Display | Colored LCD display | ||
| Filter saturation Filter state Suction power |
Error message Turbine / temperature System error |
||
| Button 1 Button 2 |
Run / Standby Suction power |
||
| Interfaces | |||
| Serial RS232C | |||
| Monitoring | Run / Standby Suction power Temperature error Turbine error Filter saturated Filter pre-warning (75%) |
Filter 1/2 vacuum Rotation speed Temperature Operating hours Run Operating hours Standby |
|
| Control unit | Run / standby Suction power+/- Reset |
||
